Iscar

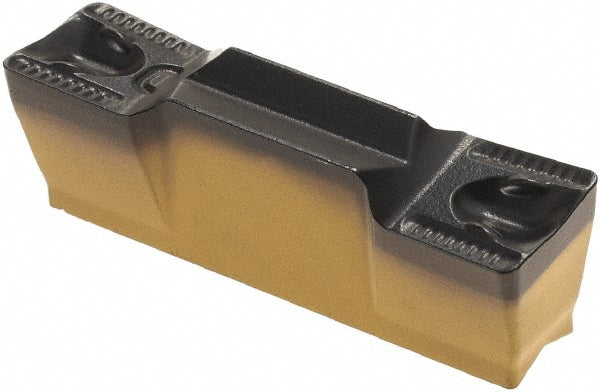

ISO 13399 Solid Carbide Insert, Grade IC8250, Al2O3 - Iscar 6200353
MFR# 6200353ISO/ANSI# ISO 13399Series Heli-Grip
$40.68List $52.10
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC8250
MaterialSolid Carbide
CoatingAl2O3
Description
The Iscar 6200353 is a ISO 13399 solid carbide indexable insert, grade IC8250, Al2O3 coated. Suited for stainless steel, steel.
Specifications
Chip breakerHG-Y
Coating finishAl2O3
Coating processCVD
Corner radius0.0197
Cutting width0.1969
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size5005
Insert size code5005Y
Insert styleGRIP
Iso codeISO 13399
Manufacturer gradeIC8250
Maximum depth of cut0.1181
Maximum depth of cut range0.1000 to 0.1500
Multi use toolYes
Overall length0.7480
Overall width0.1969
Primary workpiece materialStainless Steel; Steel
Single or double endDouble
StandardsISO 13399
