Iscar

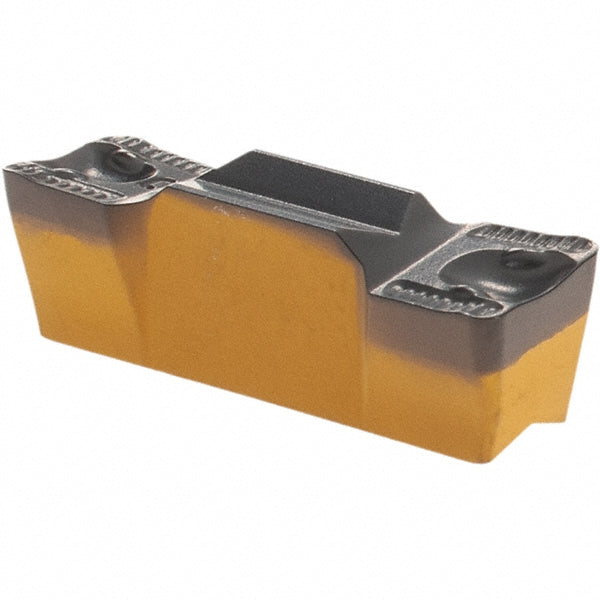

ISO 13399 Solid Carbide Insert, Grade IC8250, Al2O3 - Iscar 6200355
MFR# 6200355ISO/ANSI# ISO 13399Series Heli-Grip
$44.89List $57.50
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC8250
MaterialSolid Carbide
CoatingAl2O3
Description
The Iscar 6200355 is a ISO 13399 solid carbide indexable insert, grade IC8250, Al2O3 coated. Suited for stainless steel, steel.
Specifications
Chip breakerY
Coating finishAl2O3
Coating processPVD
Corner radius0.0315
Cutting width0.2362
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size6008
Insert size code6008Y
Insert styleGRIP
Iso codeISO 13399
Manufacturer gradeIC8250
Maximum depth of cut0.1417
Maximum depth of cut range0.1000 to 0.1500
Multi use toolNo
Overall length0.7480
Primary workpiece materialStainless Steel; Steel
Single or double endDouble
StandardsISO 13399
