Iscar

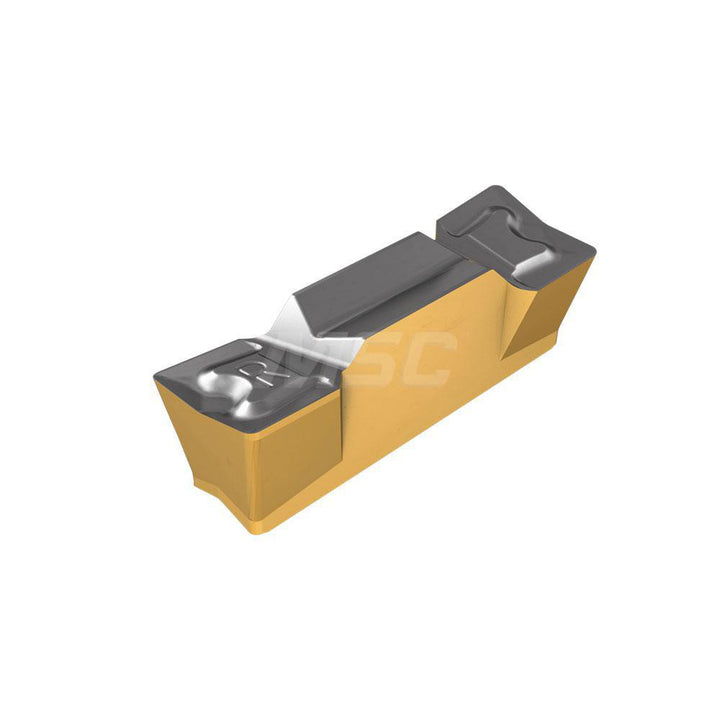

ISO 13399 Solid Carbide Insert, Grade IC830, AlTiN - Iscar 6200359
MFR# 6200359ISO/ANSI# ISO 13399Series Heliface
$37.09List $47.50
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC830
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 6200359 is a ISO 13399 solid carbide indexable insert, grade IC830, AlTiN coated. Suited for superalloy, titanium.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0157
Cutting width0.1970
Full radiusNo
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert size5004
Insert size code5004
Insert styleHFPR
Iso codeISO 13399
Manufacturer gradeIC830
Maximum depth of cut0.0984
Maximum depth of cut range0.0750 to 0.1000
Multi use toolNo
Overall length0.7480
Primary workpiece materialSuperalloy; Titanium
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
