Iscar

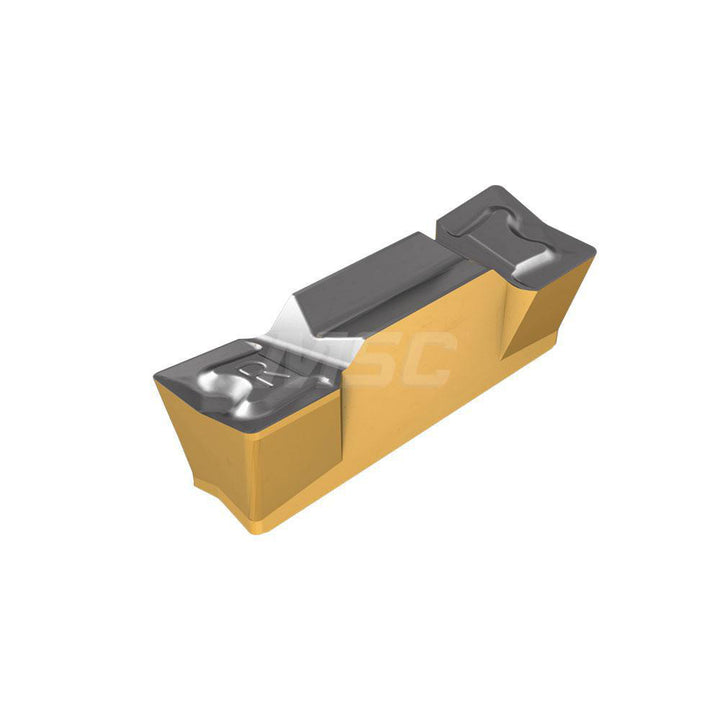

ISO 13399 Carbide Insert, Grade IC830, AlTiN - Iscar 6200363
MFR# 6200363ISO/ANSI# ISO 13399Series Heliface
$32.17List $41.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC830
MaterialCarbide
CoatingAlTiN
Description
The Iscar 6200363 is a ISO 13399 carbide indexable insert, grade IC830, AlTiN coated. Suited for superalloys, titanium.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0120
Cutting width0.1180
Full radiusNo
Insert handLeft Hand
Insert holding methodClamp
Insert materialCarbide
Insert size3003
Insert size code3003
Insert styleHFPL
Iso codeISO 13399
Manufacturer gradeIC830
Maximum depth of cut0.0590
Maximum depth of cut range0.0000 to 0.0750
Measurement typeMetric
Multi use toolNo
Overall length0.748
Primary workpiece materialSuperalloys; Titanium
RakePositive
Rake angle7
StandardsISO 13399
