Iscar

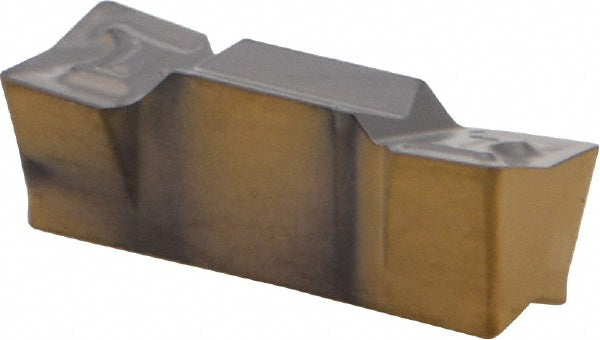

ISO 13399 Solid Carbide Insert, Grade IC830, AlTiN - Iscar 6200369
MFR# 6200369ISO/ANSI# ISO 13399Series Heliface
$40.84List $52.30
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC830
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 6200369 is a ISO 13399 solid carbide indexable insert, grade IC830, AlTiN coated. Suited for superalloy, titanium.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0157
Cutting width0.2362
Full radiusNo
Insert handLeft Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert size6004
Insert size code6004
Insert styleHFPL
Iso codeISO 13399
Manufacturer gradeIC830
Maximum depth of cut0.1180
Maximum depth of cut range0.1000 to 0.1500
Multi use toolNo
Overall length0.7480
Primary workpiece materialSuperalloy; Titanium
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
