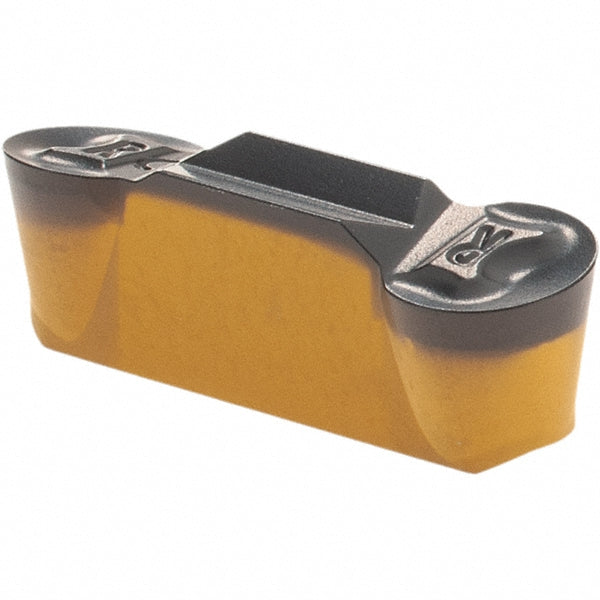

ISO 13399 Solid Carbide Insert, Grade IC8250, Al2O3 - Iscar 6200377
MFR# 6200377ISO/ANSI# ISO 13399Series Heliface
$46.93List $60.10
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC8250
MaterialSolid Carbide
CoatingAl2O3
Description
The Iscar 6200377 is a ISO 13399 solid carbide indexable insert, grade IC8250, Al2O3 coated. Suited for stainless steel, steel.
Specifications
Coating finishAl2O3
Coating processCVD
Corner radius0.1181
Cutting width0.2362
Full radiusYes
Gage diameter0.8189
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert size6030
Insert size code6030
Insert styleHFPR
Iso codeISO 13399
Manufacturer gradeIC8250
Maximum depth of cut0.1181
Maximum depth of cut range0.1000 to 0.1500
Multi use toolYes
Overall length0.7480
Overall width0.2362
Primary workpiece materialStainless Steel; Steel
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
