Iscar

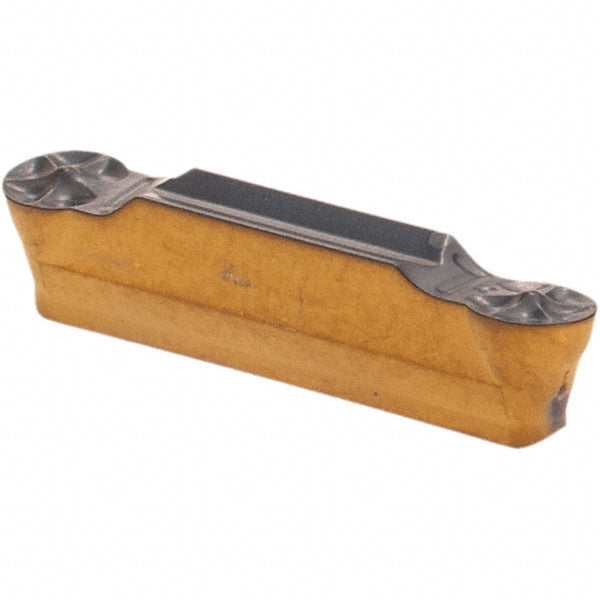

ISO 13399 Solid Carbide Insert, Grade IC808, AlTiN - Iscar 6200406
MFR# 6200406ISO/ANSI# ISO 13399Series Heliface
$33.65List $43.10
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 6200406 is a ISO 13399 solid carbide indexable insert, grade IC808, AlTiN coated. Suited for universal.
Specifications
Chip breakerY
Coating finishAlTiN
Coating processPVD
Corner radius0.0590
Cutting width0.1180
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size3015
Insert size code3015Y
Insert styleHGPL
Iso codeISO 13399
Manufacturer gradeIC808
Maximum depth of cut0.0590
Maximum depth of cut range0.0000 to 0.0750
Multi use toolNo
Overall length0.6300
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
