Iscar

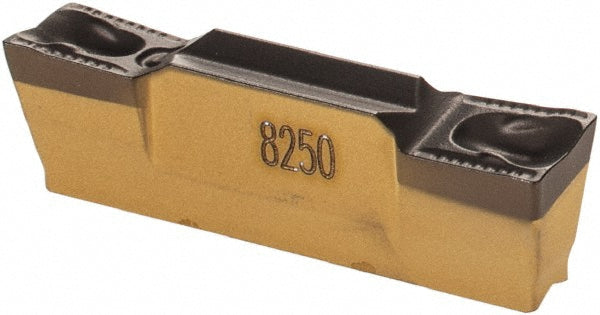

GRIP 4002Y Solid Carbide Insert, Grade IC08 - Iscar 6200414
MFR# 6200414ISO/ANSI# GRIP 4002YCat# GRIP 4002YSeries Heli-Grip
$37.95List $48.60
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC08
MaterialSolid Carbide
Description
The Iscar 6200414 is a GRIP 4002Y solid carbide indexable insert, grade IC08. Suited for non-ferrous metal.
Specifications
Chip breakerY
Corner radius0.0079
Cutting width0.1575
Full radiusNo
Insert handNeutral
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size4002
Insert size code4002Y
Insert styleGRIP
Iso codeGRIP 4002Y
Manufacturers catalog numberGRIP 4002Y
Manufacturer gradeIC08
Material gradeFine-Grained
Maximum depth of cut0.0945
Maximum depth of cut range0.0750 to 0.1000
Multi use toolYes
Overall length0.7480
Primary workpiece materialNon-Ferrous Metal
Single or double endDouble
StandardsISO 13399
