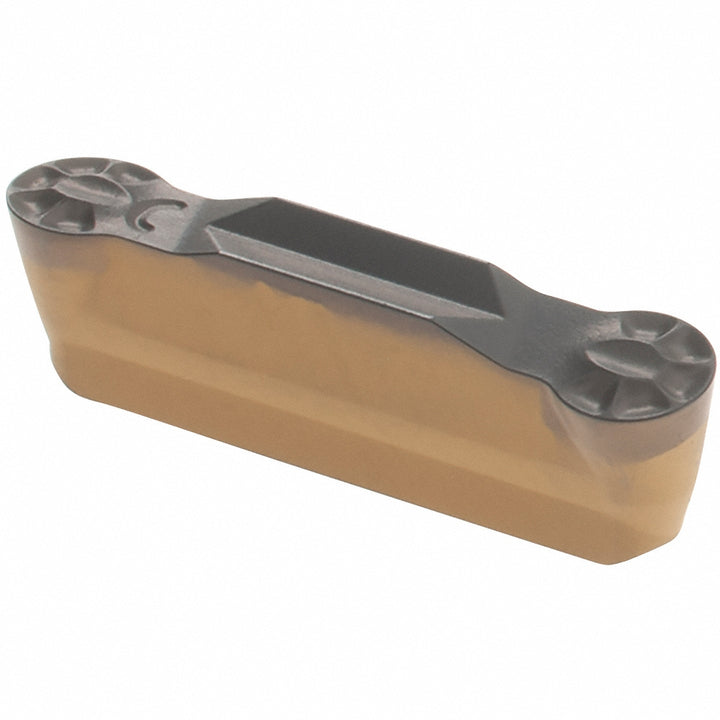

ISO 13399 Solid Carbide Insert, Grade IC8250, Al2O3 - Iscar 6200417
MFR# 6200417ISO/ANSI# ISO 13399Series Heli-Grip
$39.98List $51.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC8250
MaterialSolid Carbide
CoatingAl2O3
Description
The Iscar 6200417 is a ISO 13399 solid carbide indexable insert, grade IC8250, Al2O3 coated. Suited for stainless steel, steel.
Specifications
Chip breakerY
Coating finishAl2O3
Coating processPVD
Corner radius0.0787
Cutting width0.1575
Full radiusYes
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size4020
Insert size code4020Y
Insert styleGRIP
Iso codeISO 13399
Manufacturer gradeIC8250
Maximum depth of cut0.0787
Maximum depth of cut range0.0750 to 0.1000
Multi use toolNo
Overall length0.7480
Primary workpiece materialStainless Steel; Steel
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
