Iscar

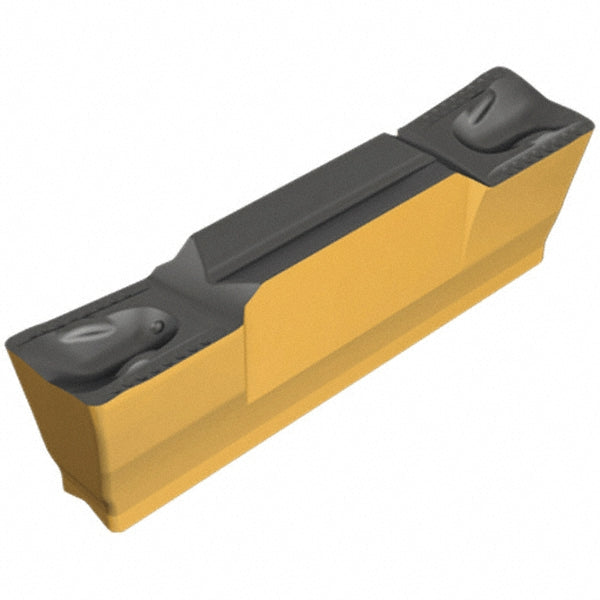

ISO 13399 Solid Carbide Insert, Grade IC5010, Al2O3 - Iscar 6200425
MFR# 6200425ISO/ANSI# ISO 13399Series Heli-Grip
$44.89List $57.50
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC5010
MaterialSolid Carbide
CoatingAl2O3
Description
The Iscar 6200425 is a ISO 13399 solid carbide indexable insert, grade IC5010, Al2O3 coated. Suited for cast iron.
Specifications
Chip breakerY
Coating finishAl2O3
Coating processCVD
Corner radius0.0197
Cutting width0.2362
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size6005
Insert size code6005Y
Insert styleGRIP
Iso codeISO 13399
Manufacturer gradeIC5010
Maximum depth of cut0.1417
Maximum depth of cut range0.1000 to 0.1500
Multi use toolNo
Overall length0.7480
Primary workpiece materialCast Iron
Single or double endDouble
StandardsISO 13399
