Iscar
ISO 13399 Solid Carbide Insert, Grade IC5010, Al2O3 - Iscar 6200429
MFR# 6200429ISO/ANSI# ISO 13399Series Heli-Grip
$46.93List $60.10
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC5010
MaterialSolid Carbide
CoatingAl2O3
Description

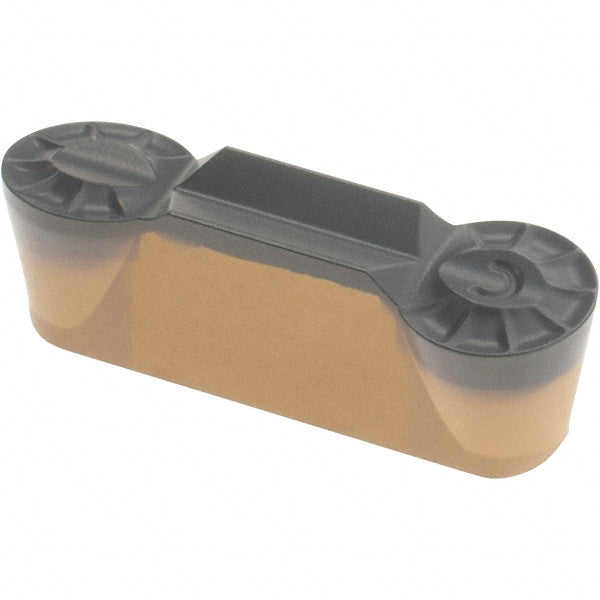

The Iscar 6200429 is a ISO 13399 solid carbide indexable insert, grade IC5010, Al2O3 coated. Suited for cast iron.
Specifications
Chip breakerY
Coating finishAl2O3
Coating processCVD
Corner radius0.1180
Cutting width0.2362
Full radiusYes
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size6030
Insert size code6030Y
Insert styleGRIP
Iso codeISO 13399
Manufacturer gradeIC5010
Maximum depth of cut0.1180
Maximum depth of cut range0.1000 to 0.1500
Multi use toolNo
Overall length0.7480
Primary workpiece materialCast Iron
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
