Iscar

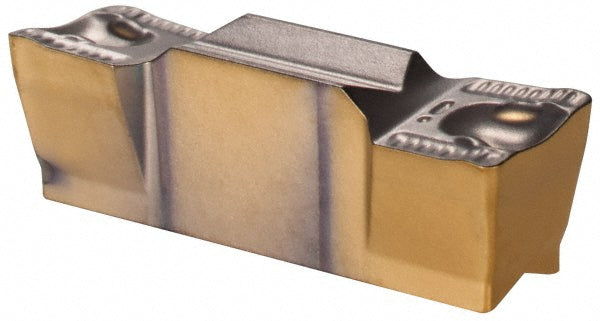

ISO 13399 Carbide Insert, Grade IC830, AlTiN - Iscar 6200442
MFR# 6200442ISO/ANSI# ISO 13399Series Heli-Grip
$40.84List $52.30
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC830
MaterialCarbide
CoatingAlTiN
Description
The Iscar 6200442 is a ISO 13399 carbide indexable insert, grade IC830, AlTiN coated. Suited for superalloys, titanium.
Specifications
Chip breakerY
Coating finishAlTiN
Coating processPVD
Corner radius0.0197
Cutting width0.2362
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert size6005
Insert size code6005Y
Insert styleGRIP
Iso codeISO 13399
Manufacturer gradeIC830
Maximum depth of cut0.1417
Maximum depth of cut range0.1000 to 0.1500
Multi use toolNo
Overall length0.748
Primary workpiece materialSuperalloys; Titanium
StandardsISO 13399
