Iscar

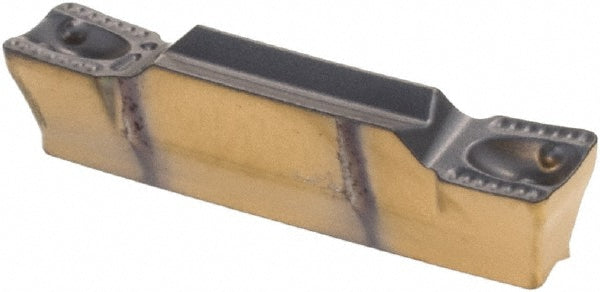

ISO 13399 Solid Carbide Insert, Grade IC830, AlTiN - Iscar 6200448
MFR# 6200448ISO/ANSI# ISO 13399Series Heli-Grip
$32.74List $41.20
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC830
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 6200448 is a ISO 13399 solid carbide indexable insert, grade IC830, AlTiN coated. Suited for superalloy, titanium.
Specifications
Chip breakerY
Coating finishAlTiN
Coating processPVD
Corner radius0.0157
Cutting width0.1250
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size318040
Insert size code318040Y
Insert styleGRIP
Iso codeISO 13399
Manufacturer gradeIC830
Maximum depth of cut0.0748
Maximum depth of cut range0.0000 to 0.0750
Multi use toolNo
Overall length0.6300
Primary workpiece materialSuperalloy; Titanium
Single or double endDouble
StandardsISO 13399
