Iscar

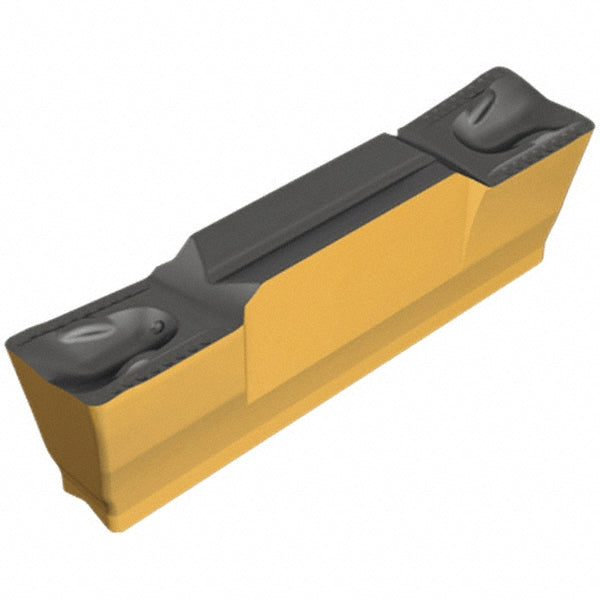

ISO 13399 Carbide Insert, Grade IC807, TiAlN - Iscar 6200461
MFR# 6200461ISO/ANSI# ISO 13399Series Heli-Grip
$41.56List $52.30
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC807
MaterialCarbide
CoatingTiAlN
Description
The Iscar 6200461 is a ISO 13399 carbide indexable insert, grade IC807, TiAlN coated. Suited for universal.
Specifications
Chip breakerY
Coating finishTiAlN
Coating processPVD
Corner radius0.0197
Cutting width0.2362in
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert size6005
Insert size code6005Y
Insert styleGRIP
Iso codeISO 13399
Manufacturer gradeIC807
Material gradeSubmicron
Maximum depth of cut0.1417
Maximum depth of cut range0.1000 to 0.1500
Multi use toolNo
Overall length0.7480in
Primary workpiece materialUniversal
StandardsISO 13399
