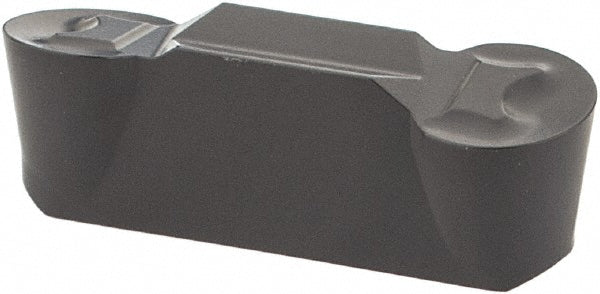

ISO 13399 Solid Carbide Insert, Grade IC428, Al2O3 - Iscar 6290314
MFR# 6290314ISO/ANSI# ISO 13399Series Heliface
$42.87List $54.90
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC428
MaterialSolid Carbide
CoatingAl2O3
Description
The Iscar 6290314 is a ISO 13399 solid carbide indexable insert, grade IC428, Al2O3 coated. Suited for cast iron, hard material, steel.
Specifications
Coating finishAl2O3
Coating processCVD
Corner radius0.1180
Cutting width0.2362
Full radiusYes
Insert handRight Hand
Insert materialSolid Carbide
Insert size6030
Insert size code6030
Insert styleHFPR
Iso codeISO 13399
Lead angle0
Manufacturer gradeIC428
Material gradeC3; C4
Maximum depth of cut0.1181
Maximum depth of cut range0.1000 to 0.1500
Multi use toolNo
Overall length0.7480
Primary workpiece materialCast Iron; Hard Material; Steel
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
