Iscar

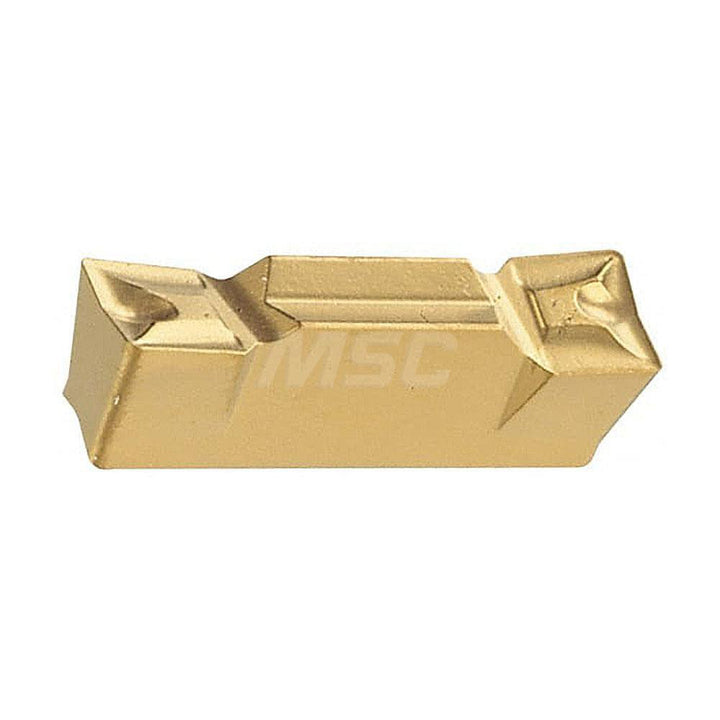

ISO 13399 Solid Carbide Insert, Grade IC328, TiCN - Iscar 6290555
MFR# 6290555ISO/ANSI# ISO 13399Series Heliface
$34.67List $44.40
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC328
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 6290555 is a ISO 13399 solid carbide indexable insert, grade IC328, TiCN coated. Suited for superalloy, titanium.
Specifications
Coating finishTiCN
Coating processPVD
Corner radius0.0157
Cutting width0.1575
Full radiusNo
Insert handRight Hand
Insert materialSolid Carbide
Insert size4004
Insert size code4004
Insert styleHFPR
Iso codeISO 13399
Lead angle0
Manufacturer gradeIC328
Material gradeC2; C3; C5; C6
Maximum depth of cut0.0787
Maximum depth of cut range0.0750 to 0.1000
Multi use toolNo
Overall length0.7480
Primary workpiece materialSuperalloy; Titanium
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
