Iscar

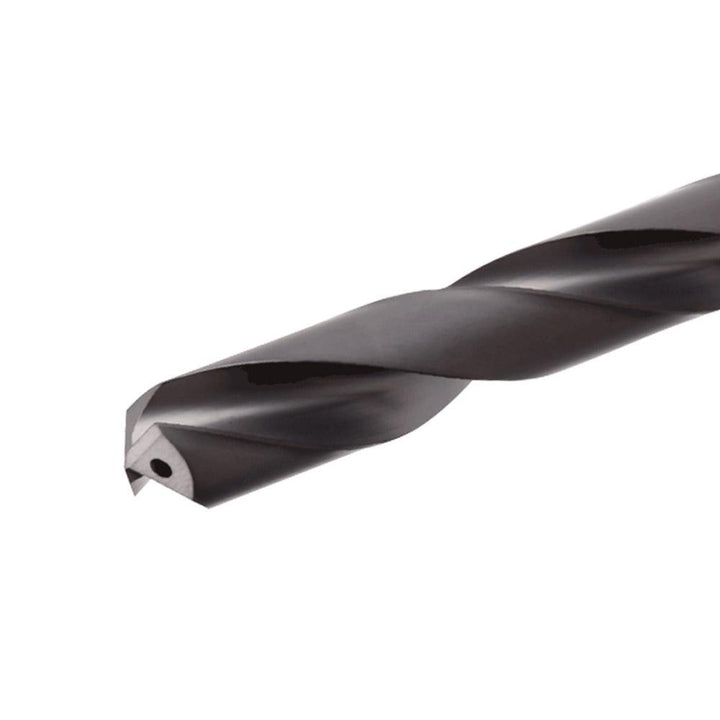

#29 Solid Carbide Drill Bit, TiAlN, 140° point - Iscar 6309494
MFR# 6309494Series SCD
$176.16List $222.00
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiAlN
Description
The Iscar 6309494 is a #29 Solid Carbide drill bit with a TiAlN finish, 140° point. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous, high-temp alloy, hardened materials. Series SCD.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit materialSolid Carbide
Drill bit size0.1360
Drill bit size wire#29
Drill point angle degrees140
Flute by diameter ratio5xD
Flute typeRegular Spiral
Maximum drilling depth0.8400
Number of flutes2
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous; High-Temp Alloy; Hardened Materials
Shank typeStraight
Spiral typeRegular
Tool applicationHolemaking; Drilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
