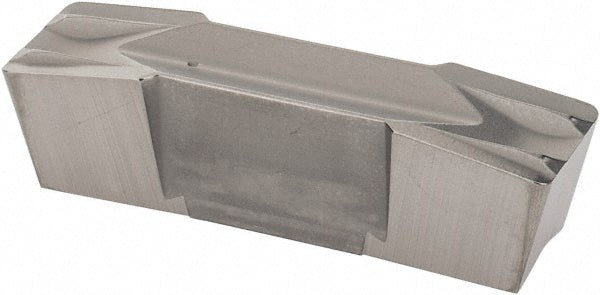

GIF 8.00E-0.80 Solid Carbide Insert, Grade IC20 - Iscar 6400263
MFR# 6400263ISO/ANSI# GIF 8.00E-0.80Cat# GIF 8.00E-0.80Series Cut Grip
$40.76List $52.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC20
MaterialSolid Carbide
Description
The Iscar 6400263 is a GIF 8.00E-0.80 solid carbide indexable insert, grade IC20. Suited for universal.
Specifications
Chip breakerF
Corner radius0.0310
Cutting height0.2520
Cutting width0.3150
Full radiusNo
Insert handNeutral
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size800E080
Insert size code800E080
Insert styleGIF
Iso codeGIF 8.00E-0.80
Manufacturers catalog numberGIF 8.00E-0.80
Manufacturer gradeIC20
Material gradeC2; C3
Maximum depth of cut (mm)27.00
Msc manufacturer numberGIF 8.00E-0.80
Multi use toolYes
Overall length1.1800
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
