Iscar

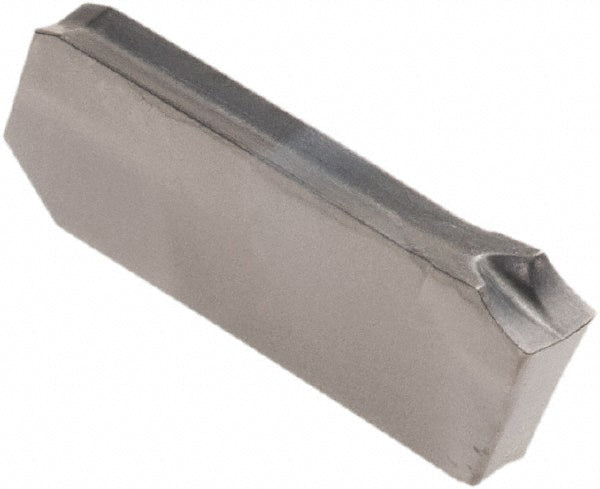

ISO 13399 Solid Carbide Insert, Grade IC20 - Iscar 6400358
MFR# 6400358ISO/ANSI# ISO 13399Series Cut Grip
$12.88List $16.50
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC20
MaterialSolid Carbide
Description
The Iscar 6400358 is a ISO 13399 solid carbide indexable insert, grade IC20. Suited for universal.
Specifications
Chip breakerJ
Corner radius0.0067
Cutting width0.0866
Full radiusNo
Gage diameter6.2992
Insert handNeutral
Insert materialSolid Carbide
Insert size22
Insert size code22J
Insert styleGIM
Iso codeISO 13399
Manufacturer gradeIC20
Multi use toolYes
Overall length0.6024
Overall width0.0866
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endSingle
StandardsISO 13399
