Iscar

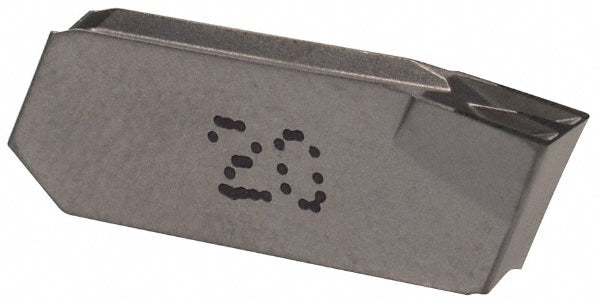

ISO 13399 Solid Carbide Insert, Grade IC20 - Iscar 6400369
MFR# 6400369ISO/ANSI# ISO 13399Series Cut Grip
$13.28List $17.00
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC20
MaterialSolid Carbide
Description
The Iscar 6400369 is a ISO 13399 solid carbide indexable insert, grade IC20. Suited for universal.
Specifications
Chip breakerW
Corner radius0.0098
Cutting width0.1181
Full radiusNo
Gage diameter6.2992
Insert handNeutral
Insert materialSolid Carbide
Insert size3
Insert size code3
Insert styleGIM
Iso codeISO 13399
Manufacturer gradeIC20
Multi use toolYes
Overall length0.6024
Overall width0.1181
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endSingle
StandardsISO 13399
