Iscar

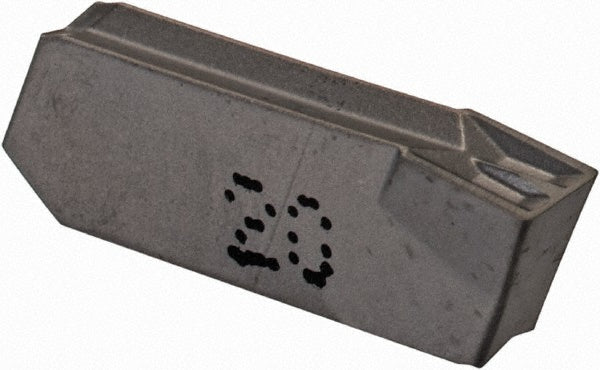

GIM 3.2 Solid Carbide Insert, Grade IC20 - Iscar 6400377
MFR# 6400377ISO/ANSI# GIM 3.2Cat# GIM 3.2Series Cut Grip
$13.28List $17.00
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC20
MaterialSolid Carbide
Description
The Iscar 6400377 is a GIM 3.2 solid carbide indexable insert, grade IC20. Suited for universal.
Specifications
Chip breakerW
Corner radius0.0087
Cutting height0.1969
Cutting width0.1260
Full radiusNo
Insert handNeutral
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size32
Insert size code32
Insert styleGIM
Iso codeGIM 3.2
Manufacturers catalog numberGIM 3.2
Manufacturer gradeIC20
Multi use toolYes
Overall length0.6024
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endSingle
StandardsISO 13399
