Iscar

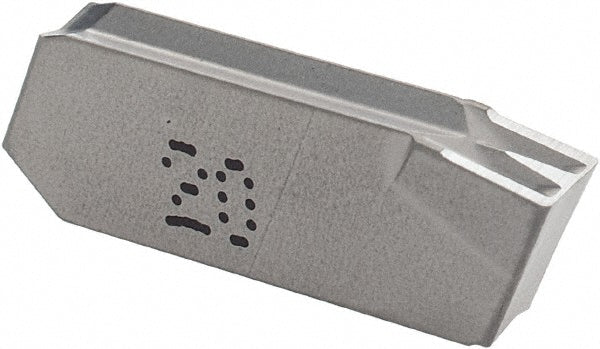

ISO 13399 Solid Carbide Insert, Grade IC20 - Iscar 6400398
MFR# 6400398ISO/ANSI# ISO 13399Series Cut-Grip
$13.28List $17.00
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC20
MaterialSolid Carbide
Description
The Iscar 6400398 is a ISO 13399 solid carbide indexable insert, grade IC20. Suited for universal.
Specifications
Coating processUncoated
Corner radius0.0098
Cutting tool applicationParting
Cutting width0.1181
Insert handRight Hand
Insert holding methodClamp; Screw
Insert materialSolid Carbide
Insert size code3.4
Insert styleGIM
Iso codeISO 13399
Lead angle4
Lead angle directionRight Hand
Manufacturer gradeIC20
Material gradeC2; C3
Msc manufacturer numberGIM 3-4RA
Multi use toolNo
Overall length0.6024
Primary workpiece materialUniversal
Relief angle7.00
Single or double endSingle
StandardsISO 13399
