Iscar

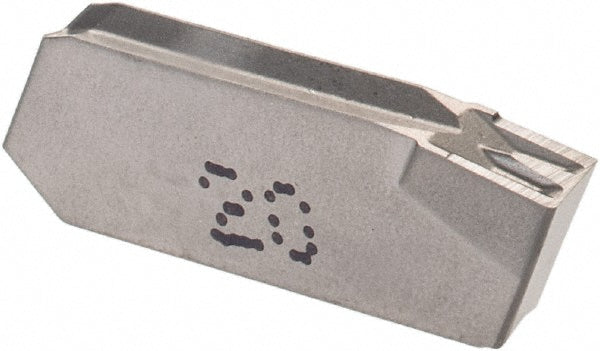

GIM 3-8RA Solid Carbide Insert, Grade IC20 - Iscar 6400407
MFR# 6400407ISO/ANSI# GIM 3-8RACat# GIM 3-8RASeries Cut Grip
$13.28List $17.00
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC20
MaterialSolid Carbide
Description
The Iscar 6400407 is a GIM 3-8RA solid carbide indexable insert, grade IC20. Suited for universal.
Specifications
Chip breakerW
Corner radius0.0098
Cutting width0.1181
Full radiusNo
Insert handRight Hand
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size38
Insert size code38
Insert styleGIM
Iso codeGIM 3-8RA
Lead angle8
Manufacturers catalog numberGIM 3-8RA
Manufacturer gradeIC20
Multi use toolYes
Overall length0.6024
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
