Iscar
ISO 13399 Solid Carbide Insert, Grade IC20 - Iscar 6400480
MFR# 6400480ISO/ANSI# ISO 13399Series Cut Grip
$28.04List $35.90
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC20
MaterialSolid Carbide
Description

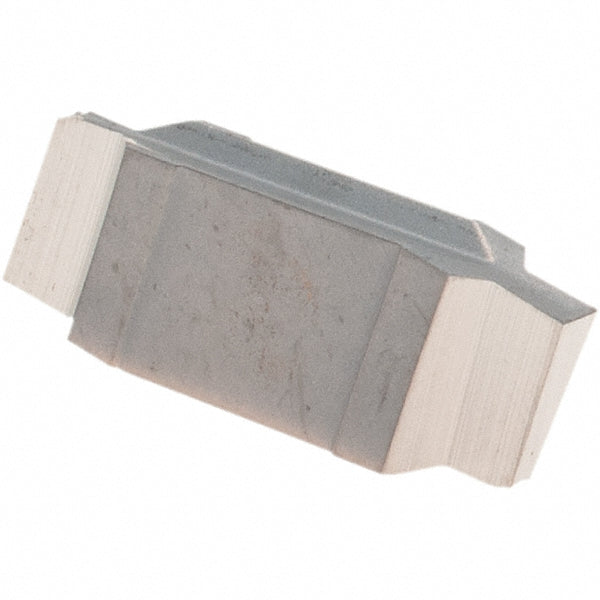

The Iscar 6400480 is a ISO 13399 solid carbide indexable insert, grade IC20. Suited for universal.
Specifications
Cutting width0.0472
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size120000
Insert size code120000
Insert styleGIP
Iso codeISO 13399
Manufacturer gradeIC20
Maximum depth of cut0.0787
Maximum depth of cut range0.0750 to 0.1000
Multi use toolNo
Overall length0.6024
Overall width0.0472
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
