Iscar

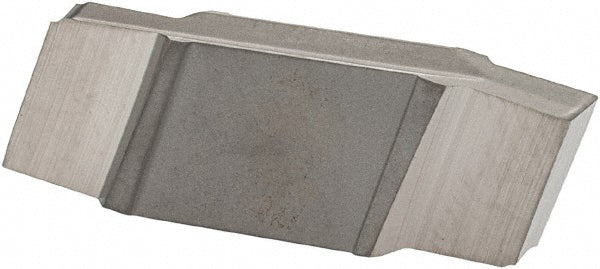

ISO 13399 Solid Carbide Insert, Grade IC20 - Iscar 6400549
MFR# 6400549ISO/ANSI# ISO 13399Series Cut-Grip
$28.04List $35.90
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC20
MaterialSolid Carbide
Description
The Iscar 6400549 is a ISO 13399 solid carbide indexable insert, grade IC20. Suited for universal.
Specifications
Corner radius0.0059
Cutting width0.0772
Full radiusNo
Insert handNeutral
Insert materialSolid Carbide
Insert size196015
Insert size code196015
Insert styleGIP
Iso codeISO 13399
Manufacturer gradeIC20
Material gradeC2; C3
Maximum depth of cut0.1181
Maximum depth of cut range0.1000 to 0.1500
Msc manufacturer numberGIP 1.96-0.15
Multi use toolNo
Overall length0.6024
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
