Iscar

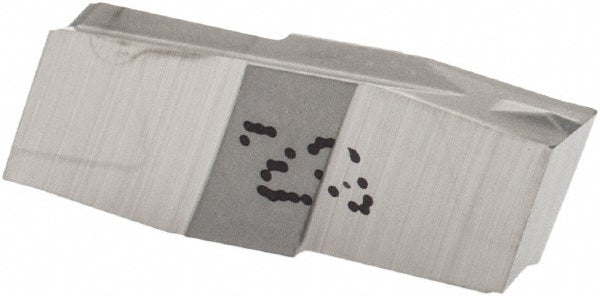

ISO 13399 Solid Carbide Insert, Grade IC20 - Iscar 6400592
MFR# 6400592ISO/ANSI# ISO 13399Series Cut-Grip
$29.05List $37.20
Save 21%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC20
MaterialSolid Carbide
Description
The Iscar 6400592 is a ISO 13399 solid carbide indexable insert, grade IC20. Suited for universal.
Specifications
Chip breakerP
Corner radius0.0039
Cutting width0.1063
Full radiusNo
Insert handNeutral
Insert materialSolid Carbide
Insert size270010
Insert size code270010
Insert styleGIP
Iso codeISO 13399
Manufacturer gradeIC20
Material gradeC2; C3
Maximum depth of cut0.5118
Maximum depth of cut range0.3000 to 1.0000
Msc manufacturer numberGIP 2.70-0.10
Multi use toolNo
Overall length0.6024
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
