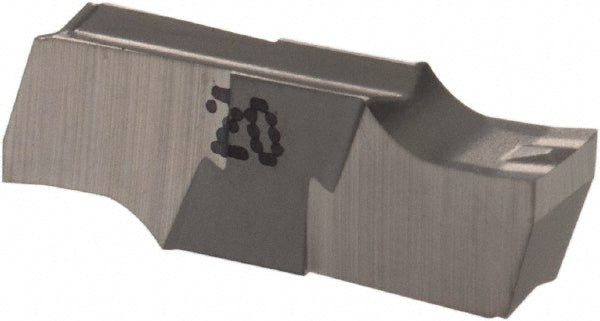

ISO 13399 Solid Carbide Insert, Grade IC20 - Iscar 6401316
MFR# 6401316ISO/ANSI# ISO 13399Series Cut Grip
$29.57List $37.20
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC20
MaterialSolid Carbide
Description
The Iscar 6401316 is a ISO 13399 solid carbide indexable insert, grade IC20. Suited for universal.
Specifications
Chip breakerP
Corner radius0.0039
Cutting width0.1299
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size330010
Insert size code330010
Insert styleGIPI
Iso codeISO 13399
Manufacturer gradeIC20
Multi use toolYes
Overall length0.6181
Overall width0.1299
Primary workpiece materialUniversal
RakePositive
Rake angle8.00
Single or double endDouble
StandardsISO 13399
