Iscar

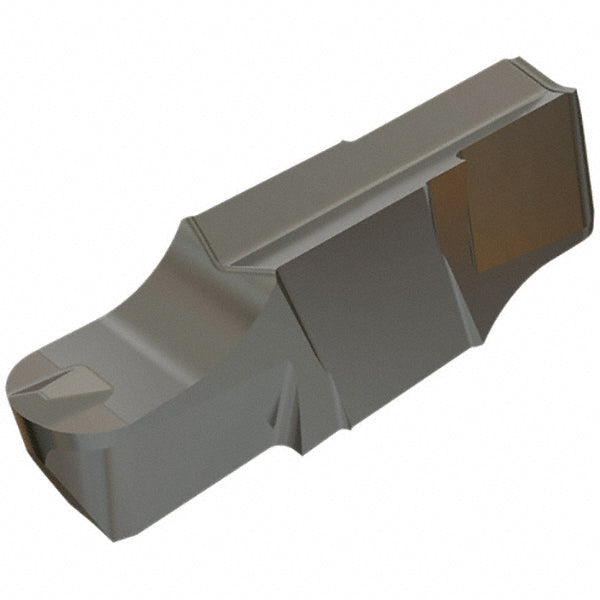

ISO 13399 Solid Carbide Insert, Grade IC20 - Iscar 6401360
MFR# 6401360ISO/ANSI# ISO 13399Series Cut Grip
$41.62List $53.30
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC20
MaterialSolid Carbide
Description
The Iscar 6401360 is a ISO 13399 solid carbide indexable insert, grade IC20. Suited for universal.
Specifications
Chip breakerUR
Corner radius0.0787
Cutting width0.1575
Full radiusNo
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert size40020
Insert size code40020
Insert styleGIPI
Iso codeISO 13399
Manufacturer gradeIC20
Multi use toolYes
Overall length0.6181
Overall width0.1575
Primary workpiece materialUniversal
RakePositive
Rake angle8.00
Single or double endDouble
StandardsISO 13399
