Iscar

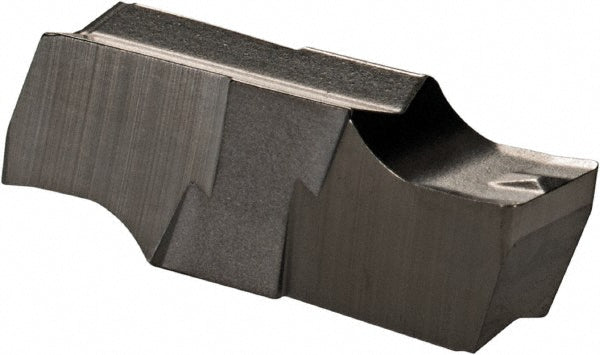

GIPI 4.00E-0.40 Carbide Insert, Grade IC20 - Iscar 6401369
MFR# 6401369ISO/ANSI# GIPI 4.00E-0.40Cat# GIPI 4.00E-0.40Series Cut Grip
$29.52List $37.80
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC20
MaterialCarbide
Description
The Iscar 6401369 is a GIPI 4.00E-0.40 carbide indexable insert, grade IC20. Suited for universal.
Specifications
Chip breakerP
Corner radius0.0160
Cutting height0.1970
Cutting width0.1570in
Full radiusYes
Insert handNeutral
Insert holding methodSelf Grip
Insert materialCarbide
Insert size400E040
Insert size code400E040
Insert styleGIPI
Iso codeGIPI 4.00E-0.40
Manufacturers catalog numberGIPI 4.00E-0.40
Manufacturer gradeIC20
Maximum depth of cut0.6100
Maximum depth of cut range0.3000 to 1.0000
Multi use toolYes
Overall length0.6180in
Primary workpiece materialUniversal
RakePositive
Rake angle8.00
StandardsISO 13399
