Iscar

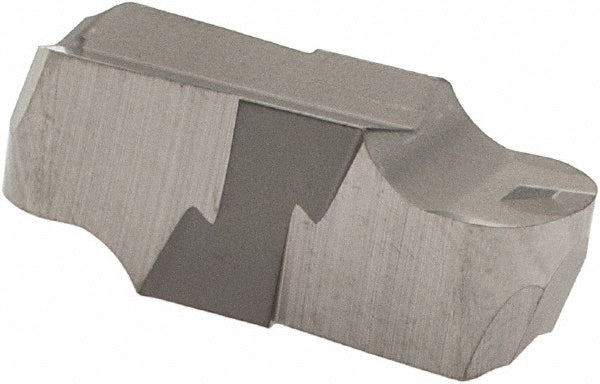

ISO 13399 Solid Carbide Insert, Grade IC20 - Iscar 6401397
MFR# 6401397ISO/ANSI# ISO 13399Series Cut-Grip
$35.20List $44.30
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC20
MaterialSolid Carbide
Description
The Iscar 6401397 is a ISO 13399 solid carbide indexable insert, grade IC20. Suited for universal.
Specifications
Chip breakerP
Corner radius0.0940
Cutting width0.1882
Full radiusYes
Insert handNeutral
Insert materialSolid Carbide
Insert size478239
Insert size code478239
Insert styleGIPI
Iso codeISO 13399
Manufacturer gradeIC20
Material gradeC2; C3
Msc manufacturer numberGIPI 4.78-2.39
Multi use toolNo
Overall length0.6180
Primary workpiece materialUniversal
RakePositive
Rake angle8.00
Single or double endDouble
StandardsISO 13399
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
