Iscar

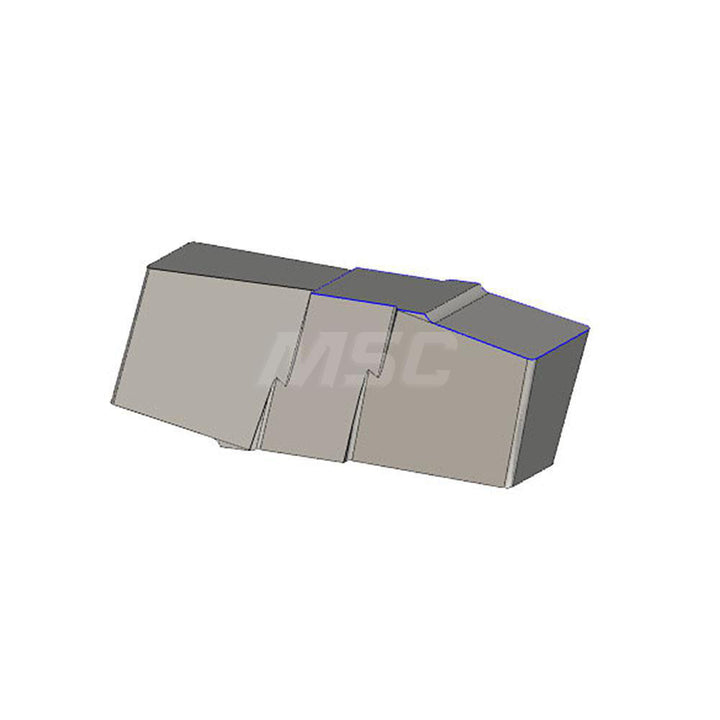

ISO 13399 Solid Carbide Insert, Grade IC20 - Iscar 6401503
MFR# 6401503ISO/ANSI# ISO 13399Series Cut Grip
$34.05List $43.60
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC20
MaterialSolid Carbide
Description
The Iscar 6401503 is a ISO 13399 solid carbide indexable insert, grade IC20. Suited for universal.
Specifications
Chip breakerP
Corner radius0.0079
Cutting width0.1252
Full radiusNo
Gage diameter0.8661
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size31802022
Insert size code318020
Insert styleGIP
Iso codeISO 13399
Manufacturer gradeIC20
Maximum depth of cut0.1378
Maximum depth of cut range0.1000 to 0.1500
Multi use toolYes
Overall length0.6024
Overall width0.1252
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
