Iscar

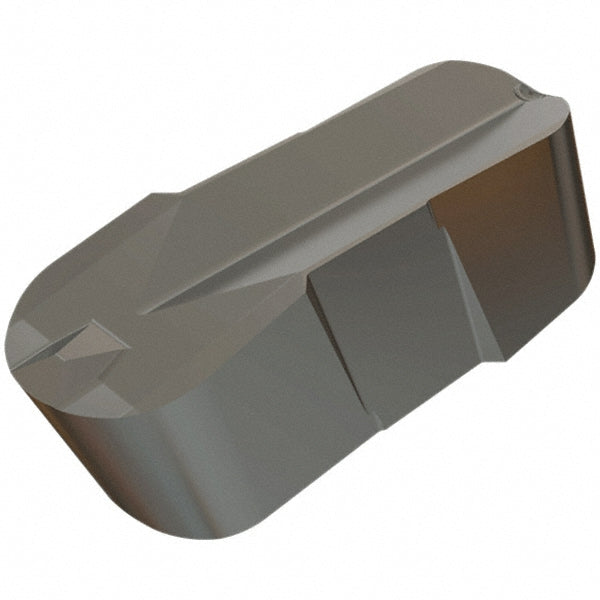

ISO 13399 Carbide Insert, Grade IC20 - Iscar 6401794
MFR# 6401794ISO/ANSI# ISO 13399Series Cut Grip
$30.22List $38.70
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC20
MaterialCarbide
Description
The Iscar 6401794 is a ISO 13399 carbide indexable insert, grade IC20. Suited for universal.
Specifications
Chip breakerP
Corner radius0.0591
Cutting width0.1181
Full radiusYes
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert size300E150
Insert size code300E150
Insert styleGIP
Iso codeISO 13399
Manufacturer gradeIC20
Maximum depth of cut0.4843
Maximum depth of cut range0.3000 to 1.0000
Multi use toolYes
Overall length0.6024
Overall width0.1181
Primary workpiece materialUniversal
RakePositive
Rake angle7
StandardsISO 13399
