Iscar

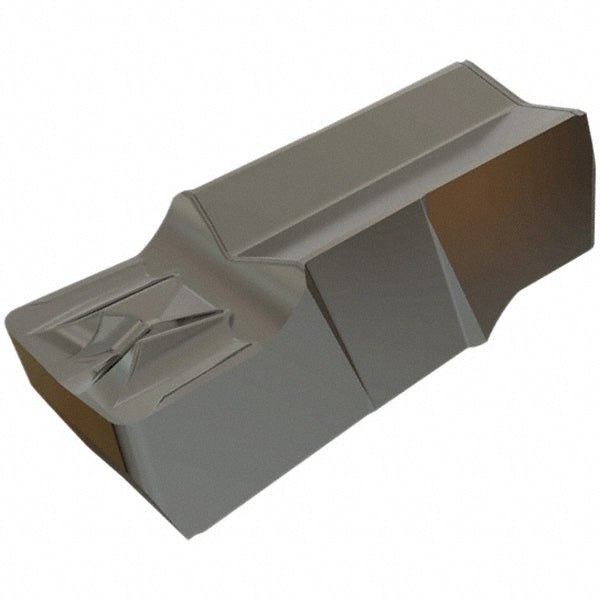

ISO 13399 Solid Carbide Insert, Grade IC20 - Iscar 6401809
MFR# 6401809ISO/ANSI# ISO 13399Series Cut Grip
$25.76List $33.00
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC20
MaterialSolid Carbide
Description
The Iscar 6401809 is a ISO 13399 solid carbide indexable insert, grade IC20. Suited for universal.
Specifications
Chip breakerF
Corner radius0.0157
Cutting width0.1575
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size400E040
Insert size code400E040
Insert styleGIFI
Iso codeISO 13399
Manufacturer gradeIC20
Maximum depth of cut0.6102
Maximum depth of cut range0.3000 to 1.0000
Multi use toolYes
Overall length0.6181
Overall width0.1575
Primary workpiece materialUniversal
RakePositive
Rake angle8.00
Single or double endDouble
StandardsISO 13399
