Iscar

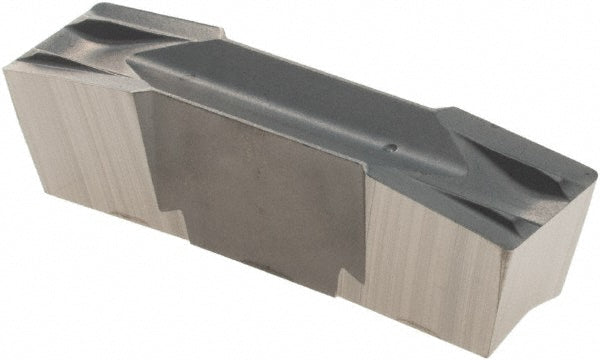

ISO 13399 Solid Carbide Insert, Grade IC20 - Iscar 6401820
MFR# 6401820ISO/ANSI# ISO 13399Series Cut-Grip
$40.76List $52.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC20
MaterialSolid Carbide
Description
The Iscar 6401820 is a ISO 13399 solid carbide indexable insert, grade IC20. Suited for universal.
Specifications
Chip breakerF
Corner radius0.0157
Cutting width0.3150
Full radiusNo
Insert handNeutral
Insert materialSolid Carbide
Insert size800040
Insert size code800040
Insert styleGIF
Iso codeISO 13399
Manufacturer gradeIC20
Material gradeC2; C3
Maximum depth of cut1.0630
Maximum depth of cut range1.0000+
Msc manufacturer numberGIF 8.00-0.40
Multi use toolNo
Overall length1.1811
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
