Iscar

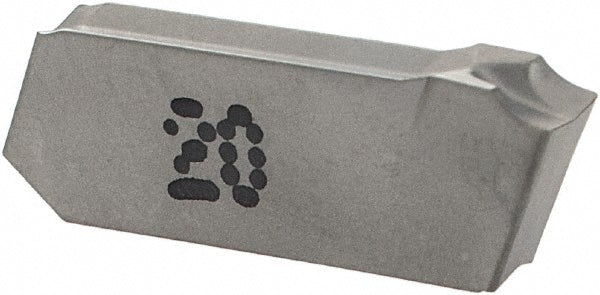

ISO 13399 Solid Carbide Insert, Grade IC20 - Iscar 6401827
MFR# 6401827ISO/ANSI# ISO 13399Series Cut-Grip
$13.28List $17.00
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC20
MaterialSolid Carbide
Description
The Iscar 6401827 is a ISO 13399 solid carbide indexable insert, grade IC20. Suited for universal.
Specifications
Chip breakerJ
Corner radius0.0087
Cutting width0.1181
Full radiusNo
Insert handNeutral
Insert materialSolid Carbide
Insert size3
Insert size code3J
Insert styleGIM
Iso codeISO 13399
Manufacturer gradeIC20
Material gradeC2; C3
Msc manufacturer numberGIM 3J
Multi use toolNo
Overall length0.6024
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endSingle
StandardsISO 13399
