Iscar

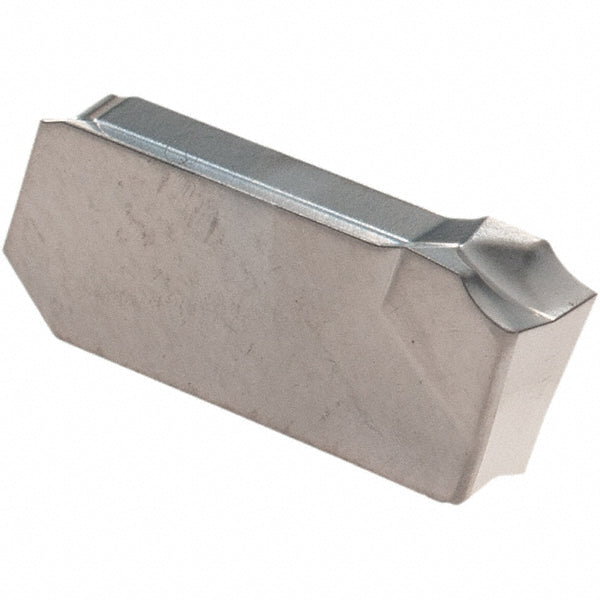

ISO 13399 Solid Carbide Insert, Grade IC20 - Iscar 6401830
MFR# 6401830ISO/ANSI# ISO 13399Series Cut Grip
$13.28List $17.00
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC20
MaterialSolid Carbide
Description
The Iscar 6401830 is a ISO 13399 solid carbide indexable insert, grade IC20. Suited for universal.
Specifications
Chip breakerJ
Corner radius0.0087
Cutting width0.1181
Full radiusNo
Insert handRight Hand
Insert materialSolid Carbide
Insert size3J4
Insert size code3J4
Insert styleGIM
Iso codeISO 13399
Lead angle4
Manufacturer gradeIC20
Multi use toolYes
Overall length0.6024
Overall width0.1181
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endSingle
StandardsISO 13399
