Iscar

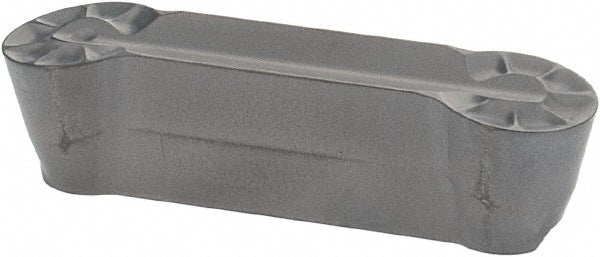

ISO 13399 Solid Carbide Insert, Grade IC220, TiCN - Iscar 6401882
MFR# 6401882ISO/ANSI# ISO 13399Series Cut-Grip
$34.67List $44.40
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC220
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 6401882 is a ISO 13399 solid carbide indexable insert, grade IC220, TiCN coated. Suited for universal.
Specifications
Chip breakerY
Coating finishTiCN
Coating processPVD
Corner radius0.1575
Cutting width0.3150
Full radiusYes
Insert handNeutral
Insert materialSolid Carbide
Insert size840
Insert size code840
Insert styleGDMY
Iso codeISO 13399
Manufacturer gradeIC220
Material gradeC2; C3
Maximum depth of cut0.1575
Maximum depth of cut range0.1500 to 0.2000
Msc manufacturer numberGDMY 840
Multi use toolNo
Overall length1.1811
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
