Iscar

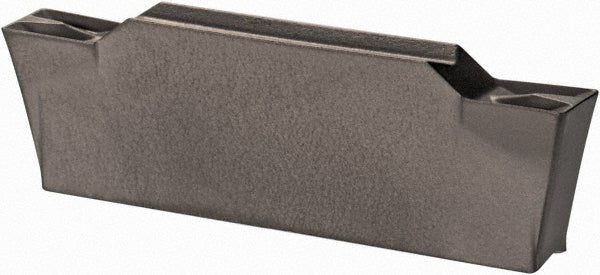

GDMW 2.4 Solid Carbide Insert, Grade IC20 - Iscar 6401889
MFR# 6401889ISO/ANSI# GDMW 2.4Cat# GDMW 2.4Series Cut Grip
$19.67List $25.20
Save 21%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC20
MaterialSolid Carbide
Description
The Iscar 6401889 is a GDMW 2.4 solid carbide indexable insert, grade IC20. Suited for universal.
Specifications
Chip breakerW
Corner radius0.0071
Cutting height0.2165
Cutting width0.0945
Full radiusNo
Insert handNeutral
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size24
Insert size code24
Insert styleGDMW
Iso codeGDMW 2.4
Manufacturers catalog numberGDMW 2.4
Manufacturer gradeIC20
Maximum depth of cut0.7087
Maximum depth of cut range0.3000 to 1.0000
Multi use toolYes
Overall length0.7874
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
