Iscar

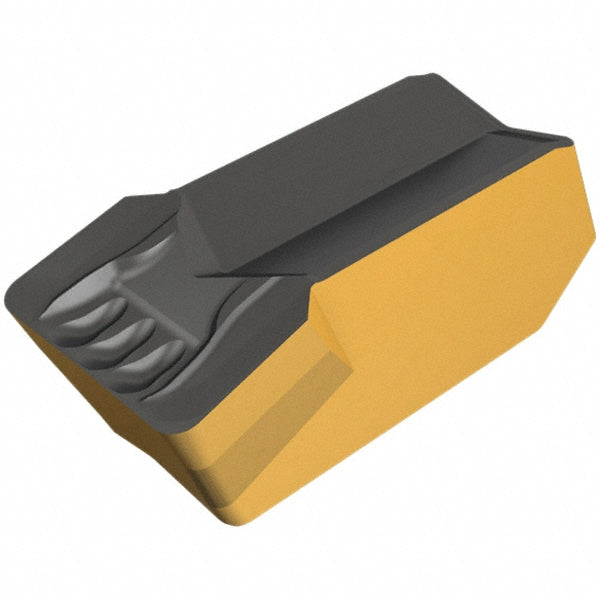

ISO 13399 Solid Carbide Insert, Grade IC20 - Iscar 6401925
MFR# 6401925ISO/ANSI# ISO 13399Series Cut Grip
$18.89List $24.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC20
MaterialSolid Carbide
Description
The Iscar 6401925 is a ISO 13399 solid carbide indexable insert, grade IC20. Suited for universal.
Specifications
Chip breakerY
Corner radius0.0315
Cutting width0.3150
Full radiusNo
Gage diameter6.2992
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size808
Insert size code808
Insert styleGIMY
Iso codeISO 13399
Manufacturer gradeIC20
Maximum depth of cut0.1890
Maximum depth of cut range0.1500 to 0.2000
Multi use toolYes
Overall length0.6024
Overall width0.3150
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endSingle
StandardsISO 13399
