Iscar

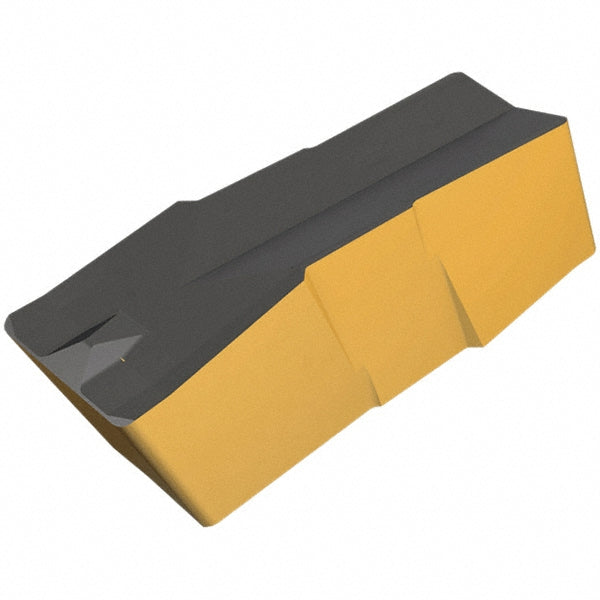

ISO 13399 Solid Carbide Insert, Grade IC428, Al2O3 - Iscar 6402002
MFR# 6402002ISO/ANSI# ISO 13399Series Cut-Grip
$41.15List $52.70
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC428
MaterialSolid Carbide
CoatingAl2O3
Description
The Iscar 6402002 is a ISO 13399 solid carbide indexable insert, grade IC428, Al2O3 coated. Suited for cast iron, hard material, steel.
Specifications
Chip breakerE
Coating finishAl2O3
Coating processCVD
Corner radius0.0217
Cutting width0.1882
Full radiusNo
Insert handNeutral
Insert materialSolid Carbide
Insert size478055
Insert size code478E055
Insert styleGIP
Iso codeISO 13399
Manufacturer gradeIC428
Material gradeC3; C4
Maximum depth of cut0.1102
Maximum depth of cut range0.1000 to 0.1500
Msc manufacturer numberGIP 4.78E-0.55
Multi use toolNo
Overall length0.6300
Primary workpiece materialCast Iron; Hard Material; Steel
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
