Iscar

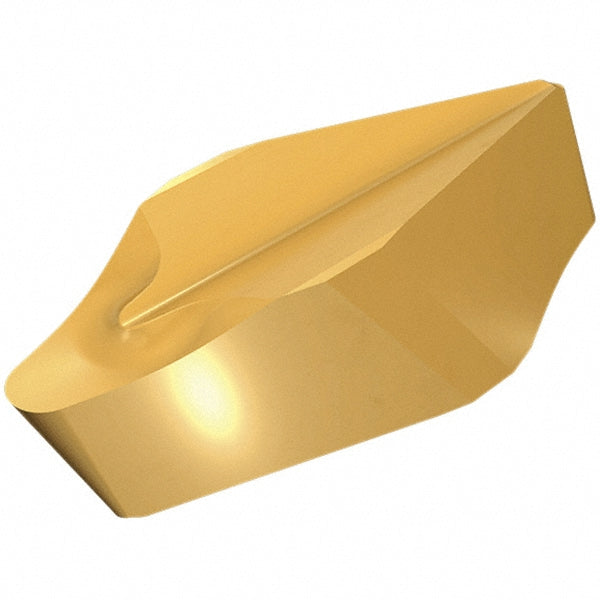

ISO 13399 Polycrystalline Diamond Insert, Grade ID5 - Iscar 6402005
MFR# 6402005ISO/ANSI# ISO 13399Series Cut Grip
$140.55List $180.00
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeID5
MaterialPolycrystalline Diamond
Description
The Iscar 6402005 is a ISO 13399 polycrystalline diamond indexable insert, grade ID5. Suited for non-ferrous metal.
Specifications
Chip breakerA
Corner radius0.0472
Cutting width0.3150
Full radiusNo
Included angle degree35
Insert handNeutral
Insert holding methodClamp
Insert materialPolycrystalline Diamond
Insert size835V120
Insert size code8035V12
Insert styleGIPA
Iso codeISO 13399
Manufacturer gradeID5
Maximum depth of cut0.1890
Maximum depth of cut range0.1500 to 0.2000
Multi use toolYes
Overall length1.1811
Overall width0.3150
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
