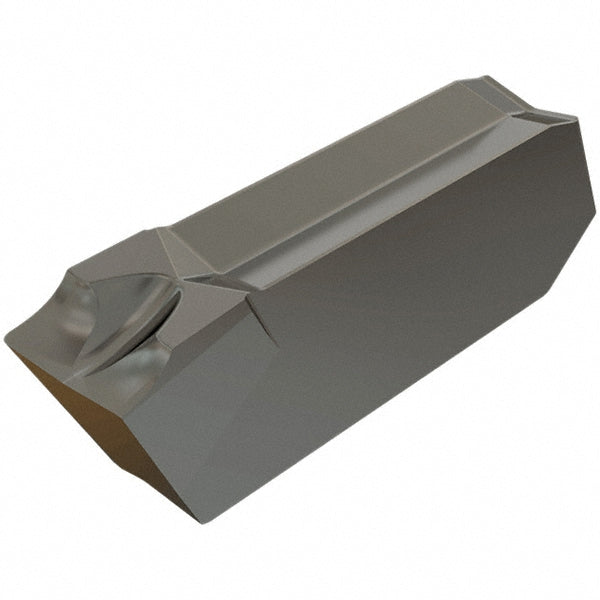

ISO 13399 Solid Carbide Insert, Grade IC328, TiN - Iscar 6402032

Iscar

ISO 13399 Solid Carbide Insert, Grade IC328, TiN - Iscar 6402032

MFR# 6402032ISO/ANSI# ISO 13399Cat# GIM 3JS-15LASeries Cut-Grip

$17.64List $22.20 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
GradeIC328
MaterialSolid Carbide
CoatingTiN

Description

The Iscar 6402032 is a ISO 13399 solid carbide indexable insert, grade IC328, TiN coated. Suited for superalloy.

Specifications

ChipbreakerJS
Coating finishTiN
Coating processPVD
Corner radius0.0008
Cutting tool applicationGrooving; Parting
Cutting width0.1181
Full radiusNo
Insert handLeft Hand
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size code3
Insert styleGIM
Iso codeISO 13399
Lead angle15
Lead angle directionLeft Hand
Manufacturers catalog numberGIM 3JS-15LA
Manufacturer gradeIC328
Material gradeP45-K40
Multi use toolYes
Overall length0.6020
Primary workpiece materialSuperalloy
Relief angle7.00
Single or double endSingle
StandardsISO 13399
