Iscar

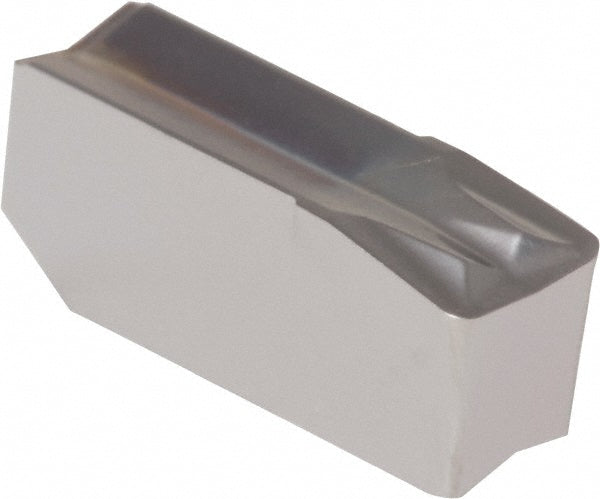

ISO 13399 Solid Carbide Insert, Grade IC328, TiCN - Iscar 6402091
MFR# 6402091ISO/ANSI# ISO 13399Cat# GIMF 406Series Cut Grip
$17.73List $22.70
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC328
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 6402091 is a ISO 13399 solid carbide indexable insert, grade IC328, TiCN coated. Suited for superalloy, titanium.
Specifications
Chip breakerF
Coating finishTiCN
Coating processPVD
Corner radius0.0236
Cutting height0.1969
Cutting width0.1575
Full radiusNo
Insert handNeutral
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size406
Insert size code406
Insert styleGIMF
Insert thickness0.1260
Iso codeISO 13399
Manufacturers catalog numberGIMF 406
Manufacturer gradeIC328
Maximum depth of cut0.0945
Maximum depth of cut range0.0750 to 0.1000
Multi use toolYes
Overall length0.6024
Primary workpiece materialSuperalloy; Titanium
RakePositive
Rake angle7.00
Single or double endSingle
StandardsISO 13399
