Iscar

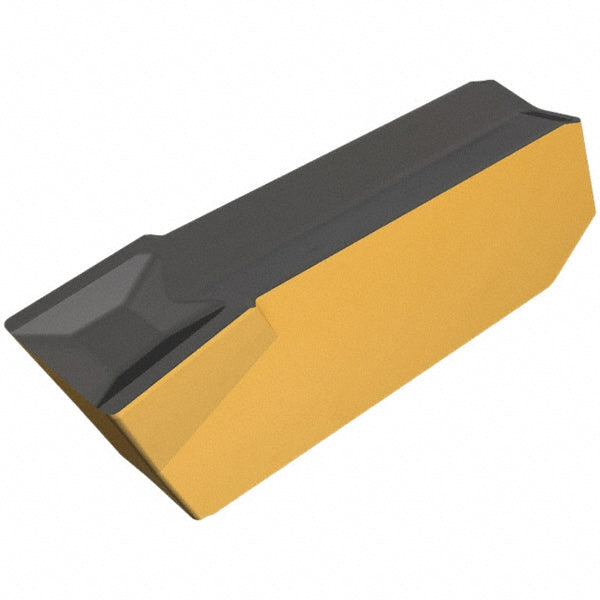

ISO 13399 Solid Carbide Insert, Grade IC328, TiCN - Iscar 6402092
MFR# 6402092ISO/ANSI# ISO 13399Series Cut Grip
$19.83List $25.40
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC328
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 6402092 is a ISO 13399 solid carbide indexable insert, grade IC328, TiCN coated. Suited for superalloy, titanium.
Specifications
Chip breakerF
Coating finishTiCN
Coating processPVD
Corner radius0.0315
Cutting width0.1969
Full radiusNo
Gage diameter6.2992
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size508
Insert size code508
Insert styleGIMF
Iso codeISO 13399
Manufacturer gradeIC328
Maximum depth of cut0.1181
Maximum depth of cut range0.1000 to 0.1500
Multi use toolYes
Overall length0.6024
Overall width0.1969
Primary workpiece materialSuperalloy; Titanium
RakePositive
Rake angle7.00
Single or double endSingle
StandardsISO 13399
