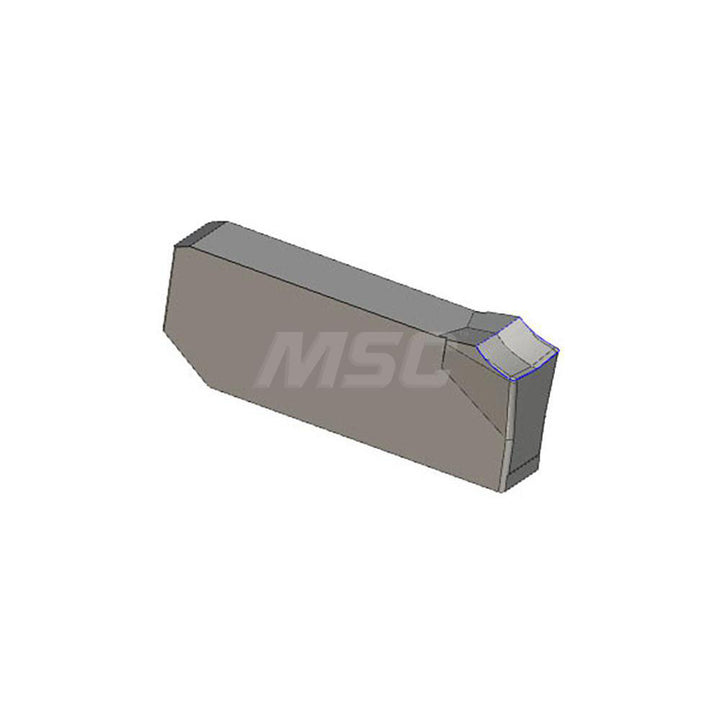

ISO 13399 Solid Carbide Insert, Grade IC328, TiCN - Iscar 6402093
MFR# 6402093ISO/ANSI# ISO 13399Series Cut-Grip
$16.71List $21.40
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC328
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 6402093 is a ISO 13399 solid carbide indexable insert, grade IC328, TiCN coated. Suited for superalloy, titanium.
Specifications
Chip breakerJ
Coating finishTiCN
Coating processPVD
Corner radius0.0067
Cutting width0.0866
Full radiusNo
Insert handNeutral
Insert materialSolid Carbide
Insert size22
Insert size code22J
Insert styleGIM
Iso codeISO 13399
Lead angle7
Manufacturer gradeIC328
Material gradeC2; C3; C5; C6
Msc manufacturer numberGIM 2.2J
Multi use toolYes
Overall length0.6024
Overall width0.0670
Primary workpiece materialSuperalloy; Titanium
RakePositive
Rake angle7.00
Single or double endSingle
StandardsISO 13399
