Iscar

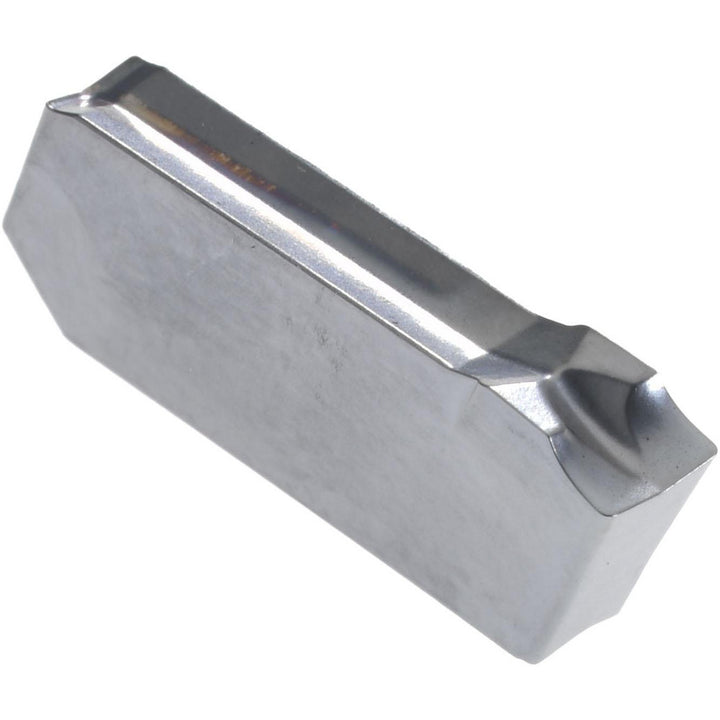

ISO 13399 Carbide Insert, Grade IC328, TiCN - Iscar 6402094
MFR# 6402094ISO/ANSI# ISO 13399Series Cut-Grip
$17.33List $22.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC328
MaterialCarbide
CoatingTiCN
Description
The Iscar 6402094 is a ISO 13399 carbide indexable insert, grade IC328, TiCN coated. Suited for superalloys, titanium.
Specifications
Chip breakerJ
Coating finishTiCN
Coating processPVD
Corner radius0.0087
Cutting width0.1181
Full radiusNo
Insert handNeutral
Insert materialCarbide
Insert size3
Insert size code3J
Insert styleGIM
Iso codeISO 13399
Lead angle7
Manufacturer gradeIC328
Material gradeC2; C3; C5; C6
Msc manufacturer numberGIM 3J
Multi use toolYes
Overall length0.6024
Overall width0.095
Primary workpiece materialSuperalloys; Titanium
RakePositive
Rake angle7
StandardsISO 13399
