Iscar

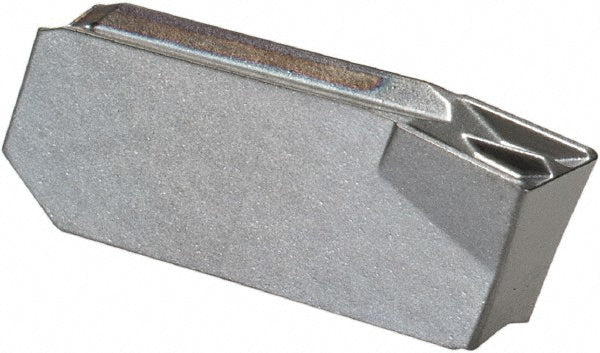

GIM 3 Solid Carbide Insert, Grade IC328, TiCN - Iscar 6402096
MFR# 6402096ISO/ANSI# GIM 3Cat# GIM 3Series Cut Grip
$15.15List $19.40
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC328
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 6402096 is a GIM 3 solid carbide indexable insert, grade IC328, TiCN coated. Suited for superalloy, titanium.
Specifications
Chip breakerW
Coating finishTiCN
Coating processPVD
Corner radius0.0098
Cutting height0.1969
Cutting width0.1181
Full radiusNo
Insert handNeutral
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size3
Insert size code3
Insert styleGIM
Iso codeGIM 3
Manufacturers catalog numberGIM 3
Manufacturer gradeIC328
Material gradeP45 to K40
Multi use toolYes
Overall length0.6024
Primary workpiece materialSuperalloy; Titanium
RakePositive
Rake angle7.00
Single or double endSingle
StandardsISO 13399
