Iscar

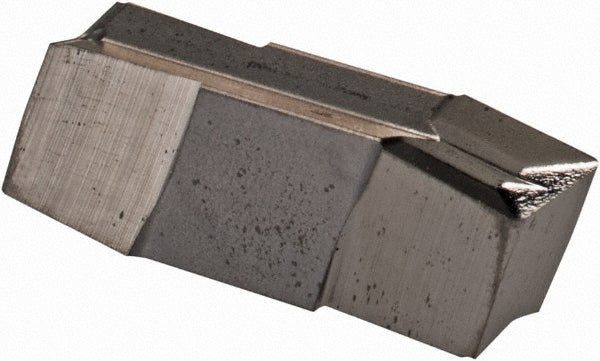

GIPA 4.00-0.40 Solid Carbide Insert, Grade IC20 - Iscar 6402108
MFR# 6402108ISO/ANSI# GIPA 4.00-0.40Cat# GIPA 4.00-0.40Series Cut Grip
$30.22List $38.70
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC20
MaterialSolid Carbide
Description
The Iscar 6402108 is a GIPA 4.00-0.40 solid carbide indexable insert, grade IC20. Suited for universal.
Specifications
Chip breakerPA
Corner radius0.0160
Cutting height0.1970
Cutting width0.1570
Full radiusYes
Insert handNeutral
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size400040
Insert size code400040
Insert styleGIPA
Iso codeGIPA 4.00-0.40
Manufacturers catalog numberGIPA 4.00-0.40
Manufacturer gradeIC20
Maximum depth of cut0.0940
Maximum depth of cut range0.0750 to 0.1000
Multi use toolYes
Overall length0.5900
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
