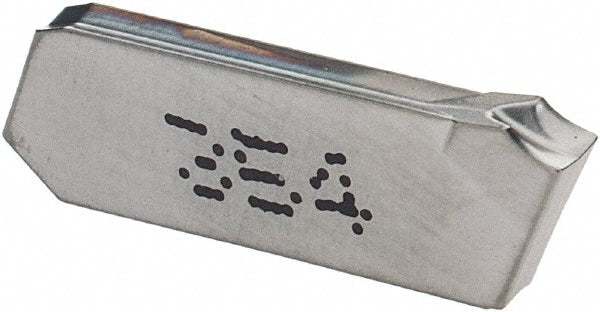

ISO 13399 Solid Carbide Insert, Grade IC354, TiCN - Iscar 6402136
MFR# 6402136ISO/ANSI# ISO 13399Series Cut-Grip
$17.01List $21.40
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC354
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 6402136 is a ISO 13399 solid carbide indexable insert, grade IC354, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerJ
Coating finishTiCN
Coating processPVD
Corner radius0.0067
Cutting width0.0866
Full radiusNo
Insert handNeutral
Insert materialSolid Carbide
Insert size22
Insert size code22J
Insert styleGIM
Iso codeISO 13399
Manufacturer gradeIC354
Material gradeC5; C6
Msc manufacturer numberGIM 2.2J
Multi use toolNo
Overall length0.6024
Primary workpiece materialStainless Steel; Steel
RakePositive
Rake angle7.00
Single or double endSingle
StandardsISO 13399
