Iscar

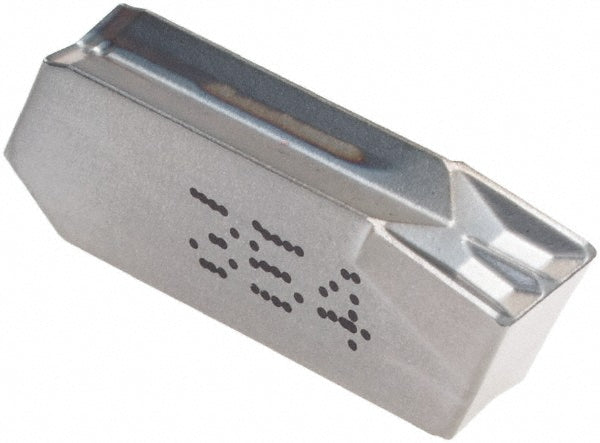

ISO 13399 Solid Carbide Insert, Grade IC354, TiCN - Iscar 6402141
MFR# 6402141ISO/ANSI# ISO 13399Series Cut Grip
$17.65List $22.60
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC354
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 6402141 is a ISO 13399 solid carbide indexable insert, grade IC354, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerW
Coating finishTiCN
Coating processPVD
Corner radius0.0098
Cutting width0.1575
Full radiusNo
Gage diameter6.2992
Insert handNeutral
Insert materialSolid Carbide
Insert size4
Insert size code4
Insert styleGIM
Iso codeISO 13399
Manufacturer gradeIC354
Multi use toolYes
Overall length0.6024
Overall width0.1575
Primary workpiece materialStainless Steel; Steel
RakePositive
Rake angle7.00
Single or double endSingle
StandardsISO 13399
